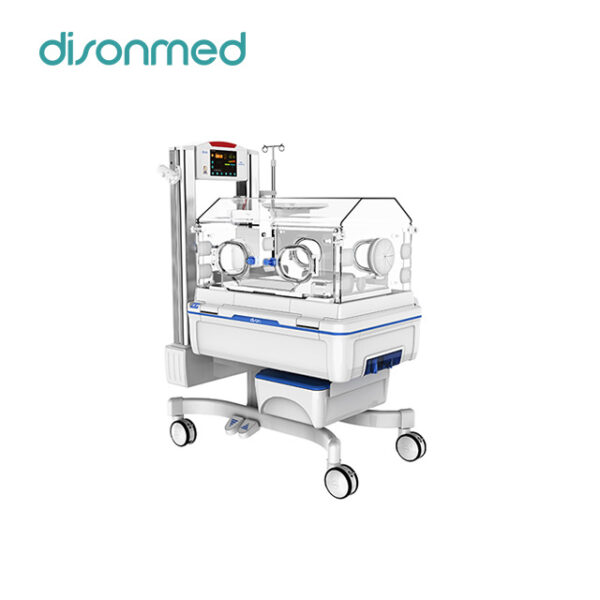

Baby Incubator BB-5000

Description

The Baby Incubator BB-5000 is an advanced neonatal care unit designed with a micro-computer-controlled servo system for precise regulation of air and skin temperatures, displayed on a 10” color LCD touchscreen with temperature graphs. It features integrated humidity control, oxygen concentration monitoring, and a baby weight system, along with multiple audible and visual alarms and a self-testing function for enhanced safety. The incubator is equipped with a double fan and air curtain structure to ensure uniform temperature and minimize heat loss. Both doors can be independently opened with damping and locking mechanisms, while the electronic bed tilts ±12° and can be pulled out from both sides.

It includes dual skin temperature sensors for central and peripheral monitoring, an adjustable brightness observation light, adjustable height with double pedal switches, and a >37°C temperature set function. Key parameters including air temperature, skin temperature, humidity, oxygen concentration, SpO₂, and heating power are displayed separately. Additional features include a double wall hood, four operating windows, one iris port, nine infusion seals, X-ray cassette tray, RS232 connector, oxygen inlet, and a pull-out drawer accessible from both sides. Optional upgrades include a double LED phototherapy attachment, making it a versatile solution for neonatal intensive care

Function features

Air and skin temperature mode servo controlled by micro-computer

10’’ color LCD display touchscreen with air and skin temperature graph

Humidity control system, oxygen concentration control system, baby weight system

Multiple audible and visual alarm function,self-testing function

Double fan, air curtain structure, better temperature uniformity,

reduce heat loss during operation

The left and right doors can be both open, with damping function

independent locking device for both door

Electronic bed tilting, ±12o step-less adjustable, The bed can be pulled out from both sides

Two skin temp sensors for measurement of central and peripheral

Observe light with brightness adjustable

The height of whole unit can be adjusted, double pedal switch

>37℃ temperature set function

Set temperature, air temperature, baby skin

temperature, humidity, oxygen concentration, timer

and heating power, SpO2 are displayed separately

The drawer can be pulled out from both sides

Double wall hood, 4 operating windows,

1 iris port, 9 big infusion seals

X-ray cassette tray

RS232 connector, Oxygen inlet,1 tray

Optional:

Double LED phototherapyDownload attachments
