Description
MeCan Medical Best Quality High Frequency Radiology System X-ray Machine Factory,MeCan Focus on medical equipments over 15 years since 2006.high frequency digital x-ray equipment can meet different parts radiography, such as head, chest, abdomen, waist, lumber, thoracic, pelvis, limbs etc. And meet different positions radiography, such as lay decubitus, side position etc. it is fixed digital x-ray machine and we can use it at bus and truck. If you would like more X-ray Machine, please send us an inquiry！

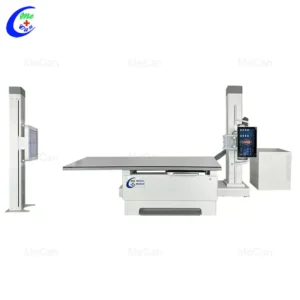

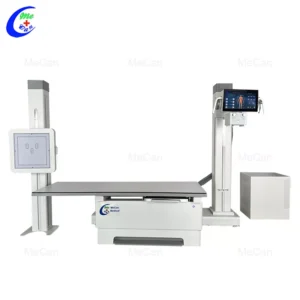

High Frequency Digital Radiology System X-ray Machine
Model：MX-DR320A10

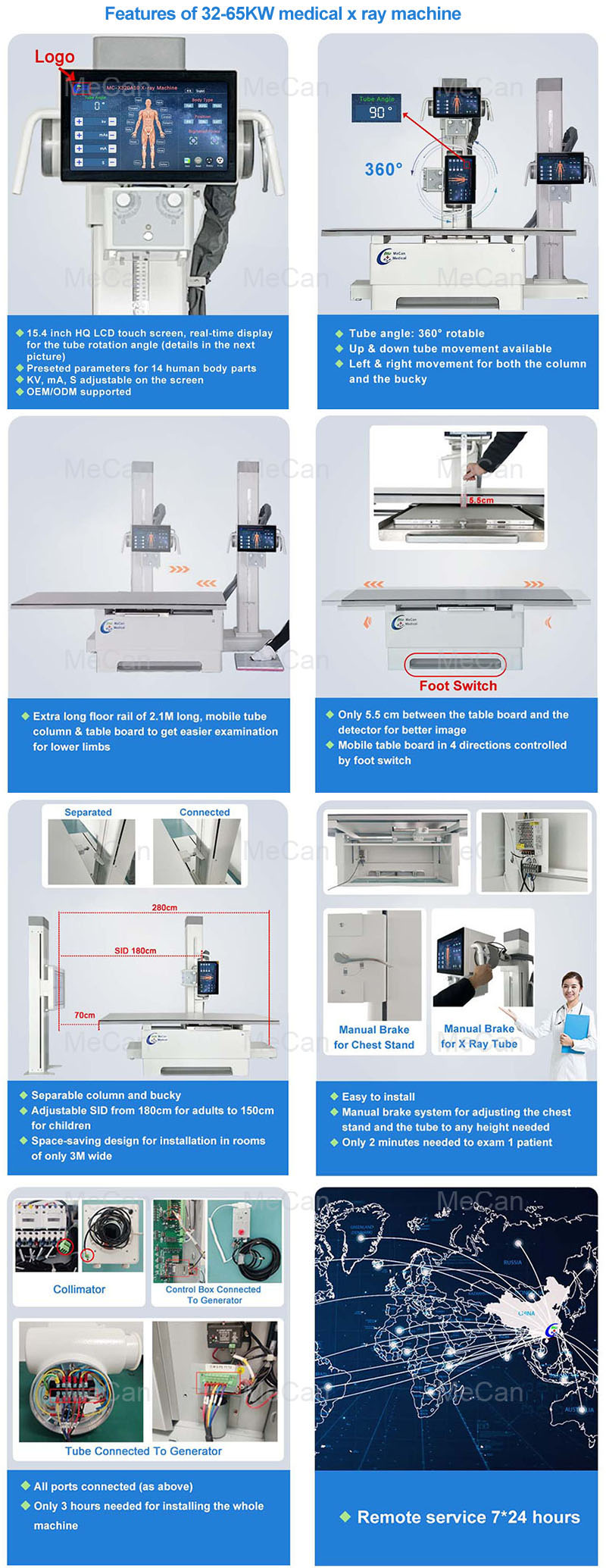

Features of our Medical X-Ray Machine:

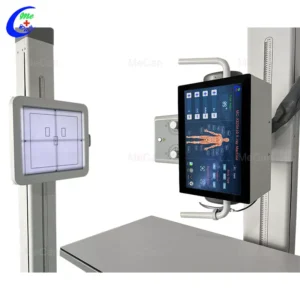

1.15.4 inch HQ LCD touch screen, real-time display for the tube rotation angle
2.Preseted parameters for 14 human body parts
3.KV, mA, S adjustable on the screen
4.OEM/ODM supported
5.Tube angle: 360° rotable
6.Up & down tube movement available
7.Left & right movement for both the column and the bucky
8.Extra long floor rail of 2.1M long, mobile tube column & table board to get easier examination for lower limbs
9.Only 5.5 cm between the table board and the detector for better image
10.Mobile table board in 4 directions controlled by foot switch
11.Separable column and bucky
12.Adjustable SID from 180cm for adults to 150cm for children
13.Space-saving design for installation in rooms of only 3M wide
14.Easy to install, only 3 hours needed for installing the whole machine
15.Manual brake system for adjusting the chest stand and the tube to any height needed
16.Only 2 minutes needed to exam 1 patient
17.Remote service 7*24 hours
Specification of Digital Medical X-Ray Machine:
| Model |
MX-320A10 |
MX-500A10 |
MX-650B10 |
MX-800A10 |
| Power |
32kW |
50kW |
65kW |
80kW |
| Power supply |
50HZ,60HZ, wire diameter >4mm2, internal resistance<0.5Ω; 20/32/50kW(single phase 220V /two-phase 380V available), 65kW(only 380V), 80kW(only 380V) |
| mA |
10-400mA |
10-630mA |
10-800mA |
10-1000mA |
| mAs |
0.4-320mAs |
0.4-1000mAs |
| KV |
40-125kV 1kV step |
40-150kV 1kV step |
| Exposure time |
1ms~10000ms |
| Focus size |
Default 0.6*0.6mm/1.2*1.2mm dual focus, toshiba (option) |
| Anode rotating speed/Anode heat capacity |
2800prm/ 1300kHU |
8400prm/1300kHU |
| Generator frequency |
30kHZ/200kHZ(option) |
80kHz-300kHz |
| Radiography table(W*L cm) |
73cm(W)*200cm(L), Move 74cm left and right, 20cm back and front |
| Flat Panel Detector |
| Image size |
17*17 inch (14*17 for option) |
| Pixels Matrix |
140μm |
| A/D Conversion |
16bits |
| Spatial Resolution |
3.6 Lp/mm |
| Software |
Professional Software |
| Computer |
CPU: I5, 8G memory, 1T solid state drive, 2 pcs Gigabit network card |

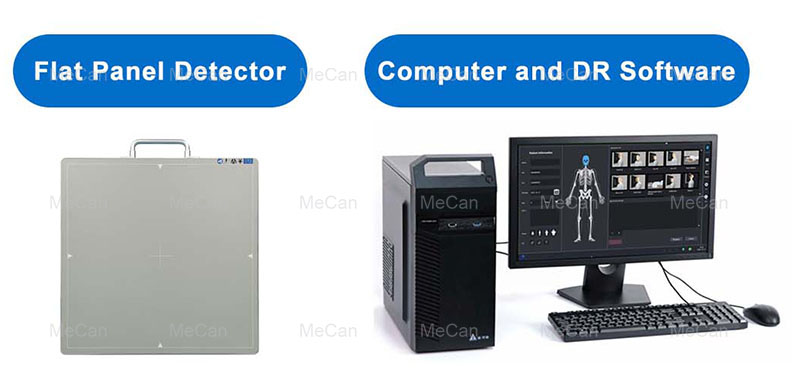

Flat panel detector, DR software and computer

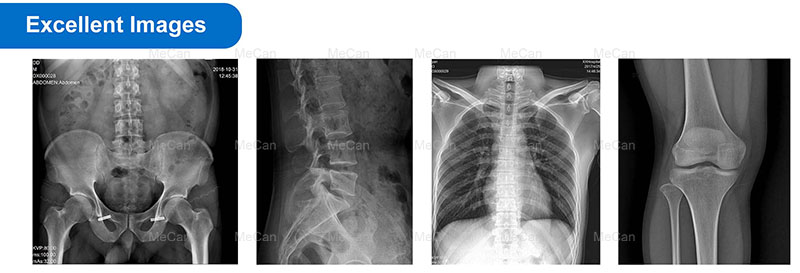

Test image of our digital medical x ray machine:

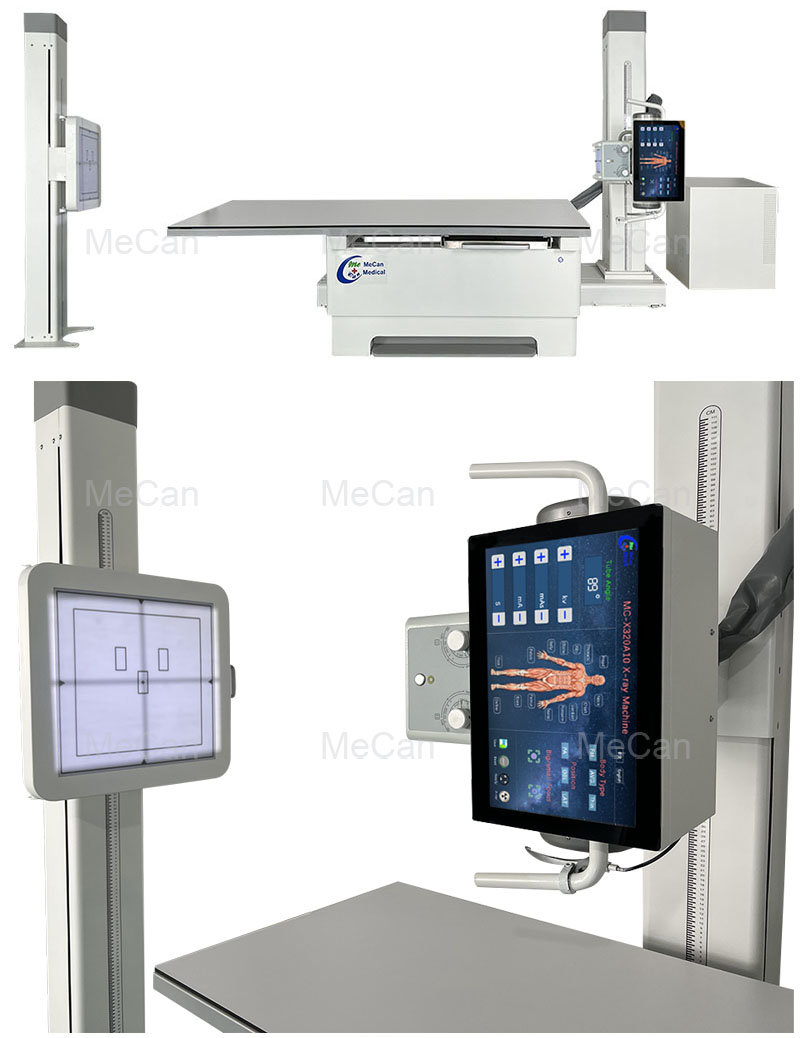

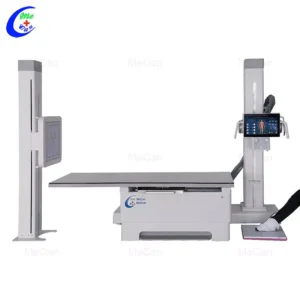

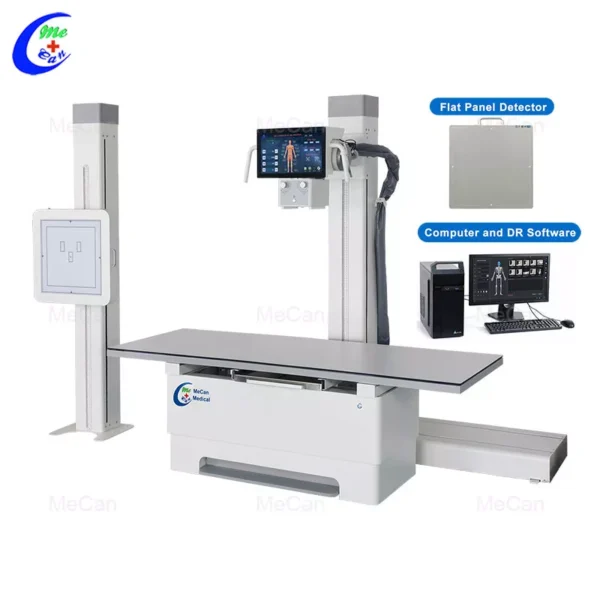

More pictures of our 32kW-80kW medical x ray machine：
FAQ
1.Technology R & D
We have a professional R&D team that continuously upgrades and innovates products.
2.Quality Control (QC)
we have a professional quality control team to ensure that the final pass rate is 100%.
3.What is your payment term?
Our payment term is Telegraphic Transfer in advance,Western union, MoneyGram,Paypal, Trade Assurance,ect.
Advantages
1.MeCan Focus on medical equipments over 15 years since 2006.
2.MeCan offer professional service,our team is well-tained
3.MeCan provide one-stop solutions for new hospitals,clinics,labs and universities,has helped 270 hospitals,540 clinics,190 vet clinics to set up in Malaysia,Africa,Europe,etc.we can save your time,energy and money.
4.More than 20000 customers choose MeCan.
About MeCan Medical
Guangzhou MeCan Medical Limited is a professional medical and laboratory equipment manufacturer and supplier. For more than ten years, we engage in supplying competitive price and quality products to many hospitals and clinics, research institutions and universities. We satisfy our customers by offering comprehensive support, purchase convenience and in time after sale service. Our main products include Ultrasound Machine, Hearing Aid, CPR Manikins,
X-ray Machine and Accessories , Fiber and Video Endoscopy, ECG&EEG Machines,
Anesthesia Machine s,
Ventilator s,
Hospital furniture , Electric Surgical Unit, Operating Table, Surgical Lights,
Dental Chair s and Equipment, Ophthalmology and ENT Equipment, First Aid Equipment, Mortuary Refrigeration Units, Medical Veterinary Equipment.
